Two Component Cartridge Timer SmartApp™

smartapps
two component

Stops the operator from activating the DualDrive^™ dispense gun after epoxy has had time to cure in the mixer
Look for other SmartApps^™ that have been designed to enhance the SmartDispenser^® DualDrive^™ System

This SmartApp^™ was developed at the request of a multinational fiber optic connector manufacturer that utilizes the SmartDispenser^® DualDrive^™ System with AirFree^® Technology to fill MT fiber optic connectors with epoxy.
The Two Component Cartridge Timer SmartApp^™ allows the dispense time to be set in seconds, minutes or hours. The time set should be based on the life of the epoxy being used. The timer is automatically activated when the SmartDispenser^® DualDrive^™ System delivers the first fluid deposit.
two component 1
If the operator pulls the trigger after the time expires, a pop-up message appears on the SmartDispenser^® screen alerting the operator to change the static mixer because its contents have cured.

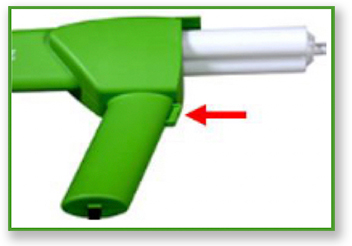

two component 2
two component 3
The main function of the Two Component Cartridge Timer SmartApp^™ is to protect two component dispense guns after lengthy production breaks in which the epoxy in the static mixer has had time to harden. When the operator returns after instances such as those, the SmartApp^™ will lock the SmartDispenser^™ preventing activation with a cured static mixer.
