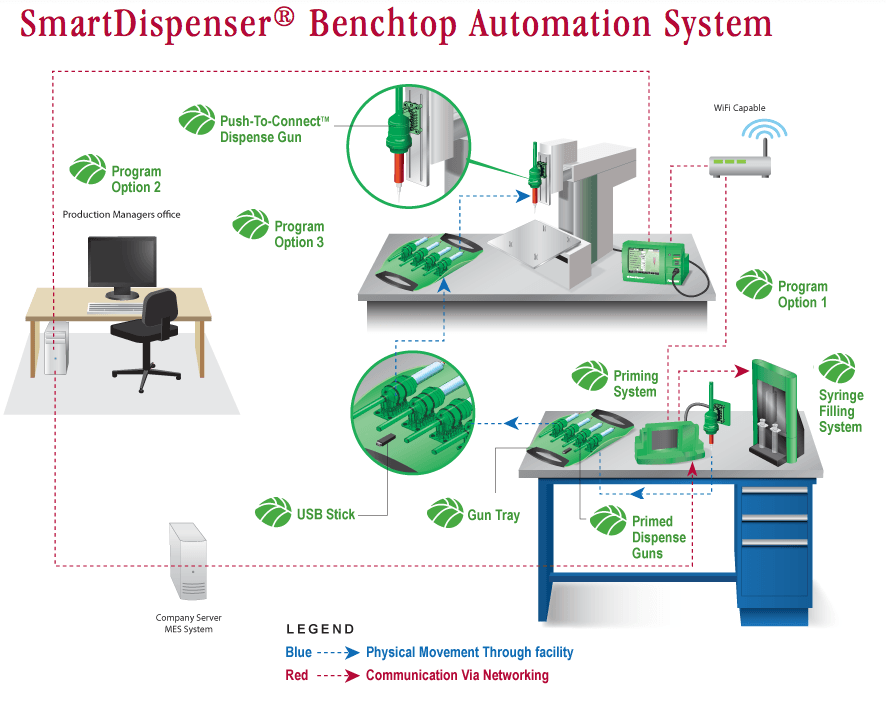

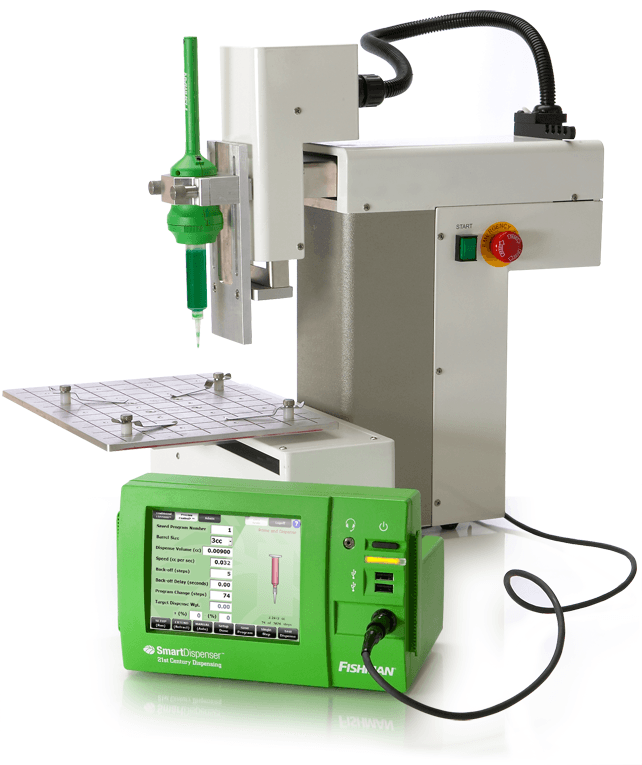

SmartDispenser® CA BenchtopAutomation System
AirFree® Technology & Cyanoacrylate Dispensing
Traditional air pressure systems inject moisture-filled air into the syringe reservoir, activating the cyanoacrylate (CA) cure cycle. AirFree® technology eliminates moisture-filled air from the cyanoacrylate dispensing process, protecting the CA formulation. As a secondary safeguard, Genius® CA components are made from proprietary plastics that inhibit CA bonding between components.
AirFree® Technology & Automation
AirFree® technology acts as and additional axis when mounted on a benchtop automation system. The precise control engineered into the X, Y and Z axis is now applied to the fluid delivery axis. All axes are motor- driven lead screws with known speeds, and can be coordinated, providing the highest precision and repeatability available on a desktop robot.
Offline Gun Reload Station – General Fluids
The Offline Gun Reload Station (OLGRS) allows the AirFree® Linear Drive System (LDS) Dispense Guns to be loaded while the automation cell is producing parts.
The benefit of the OLGRS AirFree® System is it reduces production downtime due to empty syringe changeover from minutes to seconds. This innovation allows syringe based systems to replace all types of air-driven dispense valves – fed by air pressure tanks – without impacting production throughput. In fact, the result is often higher production yields by eliminating production downtime caused by air-driven dispense valves problems: daily dispense program adjustments, clogging, cleaning and rebuilding worn parts. It also eliminates employees’ exposure to harmful cleaning agents such as MEK or Acetone… The SmartDispenser® system, featuring the LDS Dispense Guns, also delivers fluid deposits with a much higher repeatability from one fluid deposit to the next. A single OLGARS AirFree® system can service multiple automation cells. Watch this short seven minute video for a full explanation.
Product Data Sheets
| Syringe Size | 3cc | 5cc | 10cc | 30cc | ||
|---|---|---|---|---|---|---|
 |
LDAV-HT-CA-BA Large Dot |
Min. Vol. (cc) Min. Rate Max Rate |
.00086 .022 .518 |
.00151 .038 .908 |
.00251 .063 1.504 |
.00494 .123 2.963 |
|
MDAV-HT-CA-BA Medium Dot |
Min. Vol. (cc): Min. Rate: Max Rate: |
.00043 .011 .259 |
.00076 .019 .454 |
.00125 .031 .750 |
.00247 .062 1.481 |
|
SDAV-HT-CA-BA Small Dot |
Min. Vol. (cc): Min. Rate: Max Rate: |
.00022 .005 .130 |
.00038 .009 .227 |
.00063 .016 .376 |
.00123 .031 .741 |
|
SSDAV-HT-CA-BA Super Small Dot |
Min. Vol. (cc): Min. Rate: Max Rate: |
.00011 .003 .065 |
.00019 .005 .114 |
.00031 .008 .188 |
.00062 .015 .370 |
|
OLGARS | |||||
|
